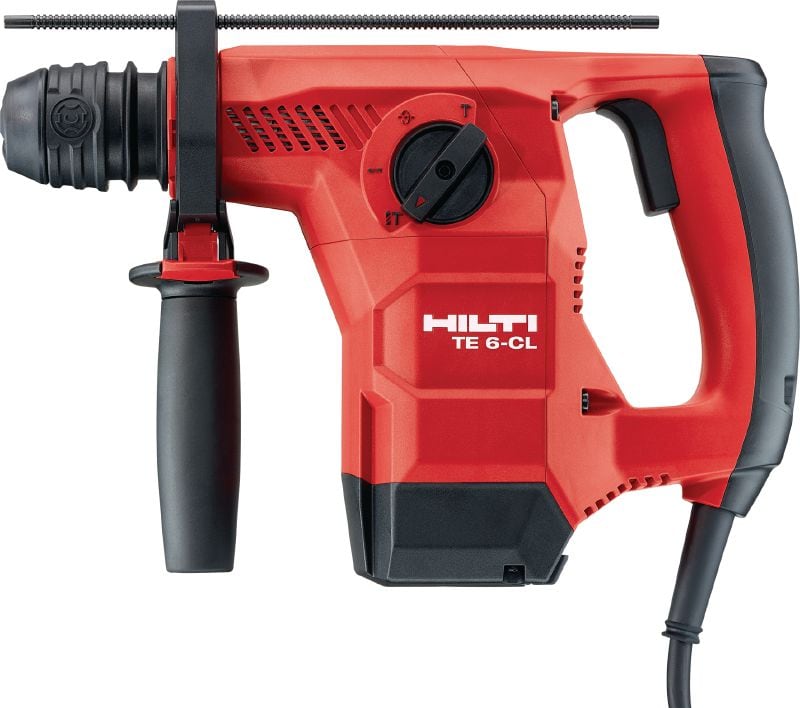

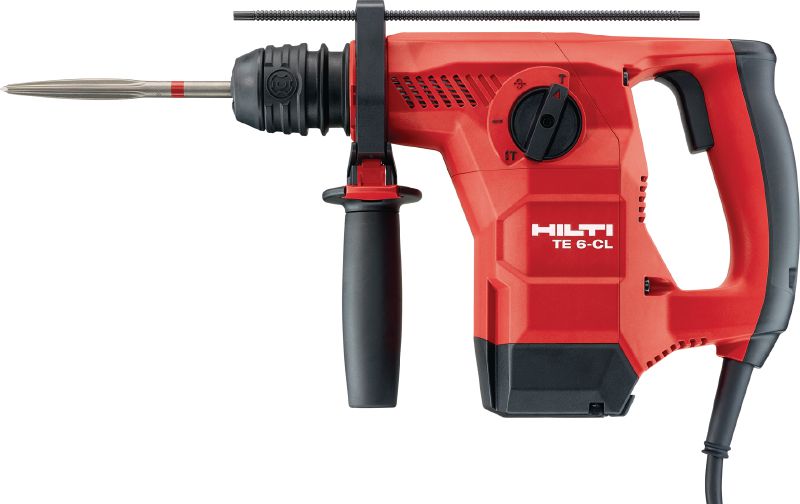

TE 6-CL Rotary hammer

Rotary hammer TE 6-CL 230V case #2251578

Configurator

Technical Data

Documents

Features & Applications

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT

ZAR 15,872.93

ZAR 15,872.93 / 1 Piece

Technical Data

Weight according EPTA Procedure 01/2003 without battery

3.38 kg

Optimum hammer drilling range

6 - 16 mm

Single impact energy

2.3 J

Working mode

Hammer drilling, Drilling, Chiselling, Chisel setting

Hammer drilling diameter range

4 - 28 mm

Hammer drilling RPM

960 rpm

Full hammering frequency

4680 impacts/minute

Functionality

Chiselling, Depth gauge, Reverse mode, Removable chuck

Triaxial vibration value for hammer drilling into concrete (ah,HD)

17.3 m/s² ¹

Triaxial vibration for chiselling in concrete

10.1 m/s² ²

A-weighted emission sound pressure level

92 dB (A) ³

Rated input power

890 W

Dimensions (LxWxH)

325 x 93 x 221 mm

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)

Documents

Material safety datasheet

Operating Instruction

pdf Material safety datasheet Hilti Grease (EN) [ 734.8 KB ]

Download

Features & Applications

Features

Built for speed and longevity – re-engineered to deliver higher drilling performance from an even more reliable, longer-lasting rotary hammer

Applications

Drilling and hammer drilling in concrete, masonry and stone
Drilling anchor holes and formwork assembling
Concrete chiselling and slag removal
Chiselling of small channel openings into concrete and masonry
Precision chiselling in masonry
